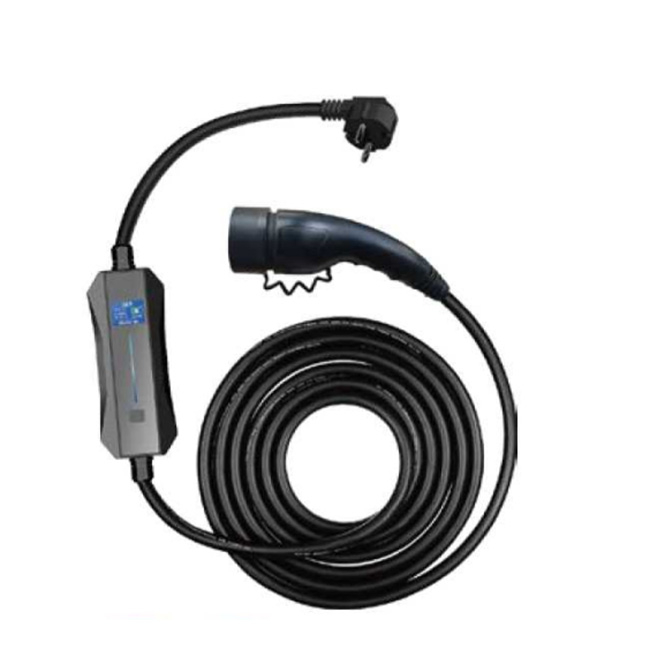

MODE 2 EV CHARGER PRO

Electrical Properties

Voltage

230VAC ±10%

230VAC ±10%

Max Output Current

16A(6/8/10/13/16A Optional )

32A(6/8/10/13/16/20/32A Optional)

Max Output Power

3.6kw

7kw

Cable Specification

3*2.5mm²+2*0.5mm²

3*6mm²+2*0.5mm²

Frequency

50/60 Hz

Structure Design

Residual current protection

30mA AC+DC6mA (optional)

Display

1.8" LCD

LED Indicator

LED Light bar

Front Panel

PMMA

installation Method

Wall-mount/carry-on Optional

Charging Outlet

TYPE1/2 + 4.5M charging cable

Housing Material

PC+GF10%

Security Protection

Safety Standard

IEC/EN 62752:2016

Multiple Protection

Over/under voltage protection, Surge protection,

Over temperature protection, Over current protection, Leakage Protection, Short circuit protection,

EFT Protection

Warranty

1 year

Environmental Performance

Working temperature

-30C-60C

Storage temperature

-40C~70C

Working humidity

5%~95%, No condensation

Protection Level (control box)

IP67

Altitude

<2000m

Application Site

Indoor/Outdoor

Cooling Method

Natural cooling

Extra Function

Temperature detection function

Yes (check the temp.of PCB and show it on the screen )

Schedule charging

Yes(l-8hours )

Packing Details

Product Size

255*109*55mm

Product Weight (Net Weight)

〈2.7KG

《3.3KG

Product Weight (Gross Weight)

<2.9KG

<3.6KG
